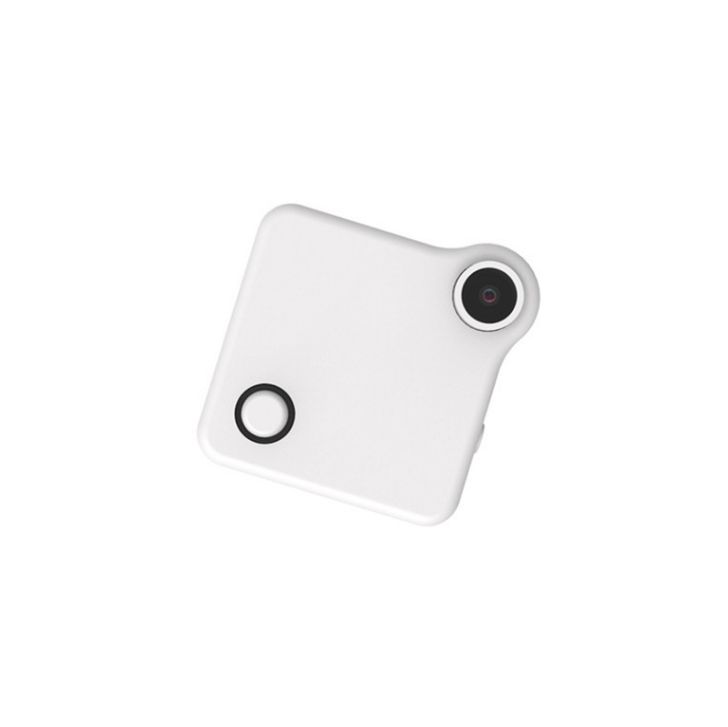

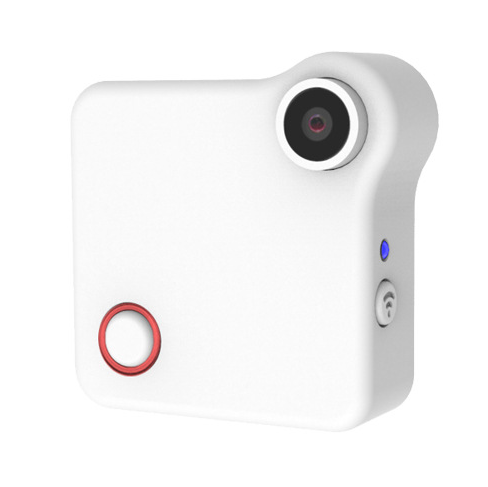

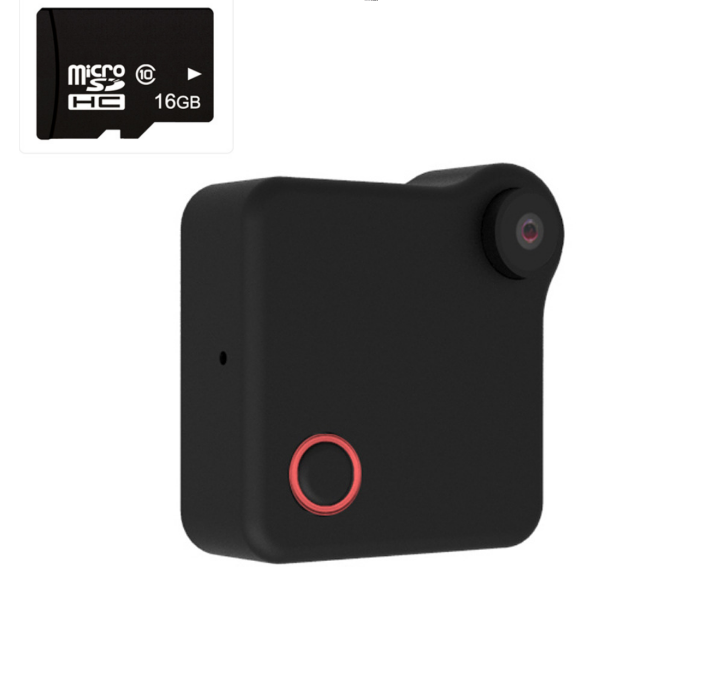

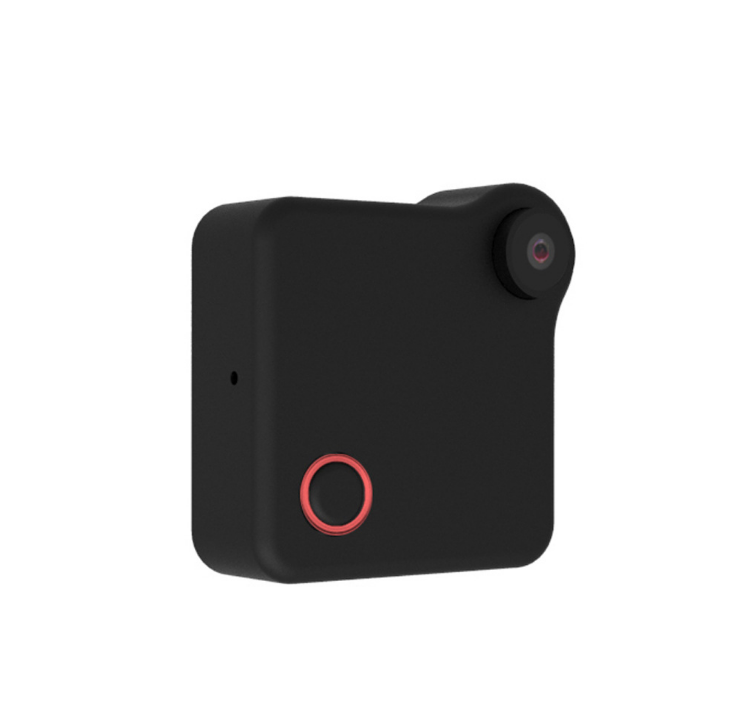

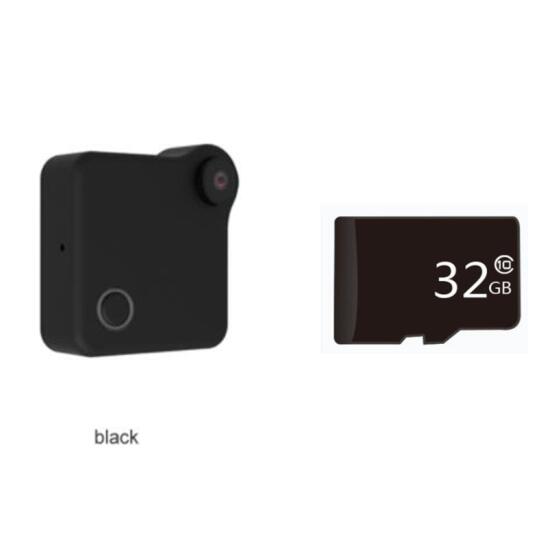

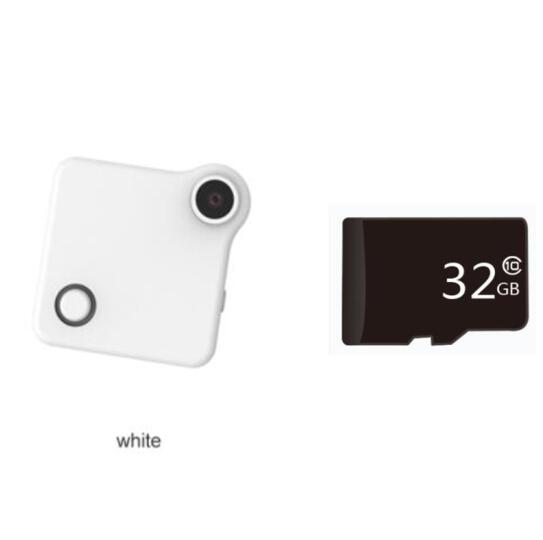

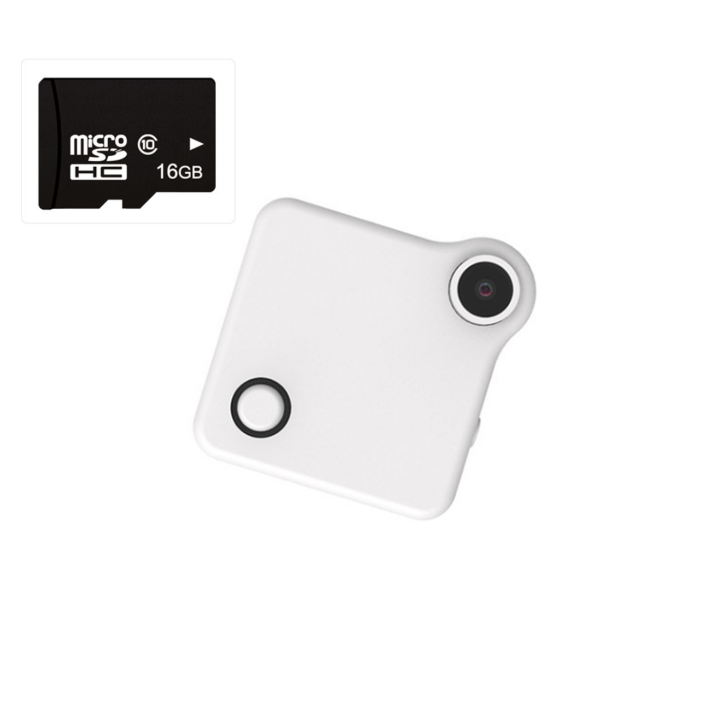

Wireless WiFi Mini Camera
- Type: Mini
- Package: Yes
- High Definition Support: 1080P (Full-HD)
- Sensor Technology: CMOS
- Model Number: C1 Wearable Body IP Camera
- Memory Card Type: MicroSD / TF
- Built-in Memory Size: Non
Feature:
C1 CookyCam - Mini Camera + IP Camera + Body Camera + Action Camera All In 1
Wearable body design, with a clip you can attach to bag, clothes
Magnetic mount & clip
Special mount for bike, car. Compatible with GoPro accessories
Wi-Fi IP & P2P connection for remote control and live watching
Time Lapse every 15 seconds
Specifications:
- Video Resolution: HD 1280x720P
- Photo Resolution:1280x720 JPG
- File Format: MP4 (H.264 Coded)
- Sensor Type: CMOS
- View Angle:90 degrees Optical first-person view angle
- IOS:50 - 6400
- Mic: Built-in noise-canceling microphone
- External Storage: Micro SD Card, Max. 32GB
- System: Windows XP / Mac OS 10.2 or above
- Remote Control: P2P Connect/ Remote Connect
- Dimension:40x40x15mm
- Weights:32g
- Battery: Built-in 600mAh
Basic Operation:
1. Video Mode - Red Mode indicator keeps on
Press the Confirm button once, the red Mode indicator turns off, the camera starts to record video.
Press the Confirm button again to save the video file, the red Mode indicator keeps on, and the camera is in Video Recording Standby mode.
2. Photo Mode - The Blue Mode indicator keeps on
Press the Confirm button once, and the camera takes a photo every 15 seconds (the blue mode indicator flashes once).
3. Motion Detection - The Red&Blue Mode indicator keeps on
When the camera detects an object moving, the Red&Blue Mode indicator turns off and starts to take video.
AP Connection (LAN)
Scan the QR Code to download the App.
Connect your smartphone's Wi-Fi to the Camera.
1. Power on Press the Confirm Button for 3 seconds and wait until initialization is finished.
2. Connect Mobile: Open WLAN, choose CookyCam, and enter password 12345678(default)
3. Open APP: Click the LAN and camera ID number, and use your smartphone to control the camera. Through the APP, you can preview images, control the camera, and download files.
In the camera setting, you can set the camera to more modes.
