Portable Ultrasound Scanner, 3.5 Convex Probe Laptop, Digital Diagnostic Machine

Introductions

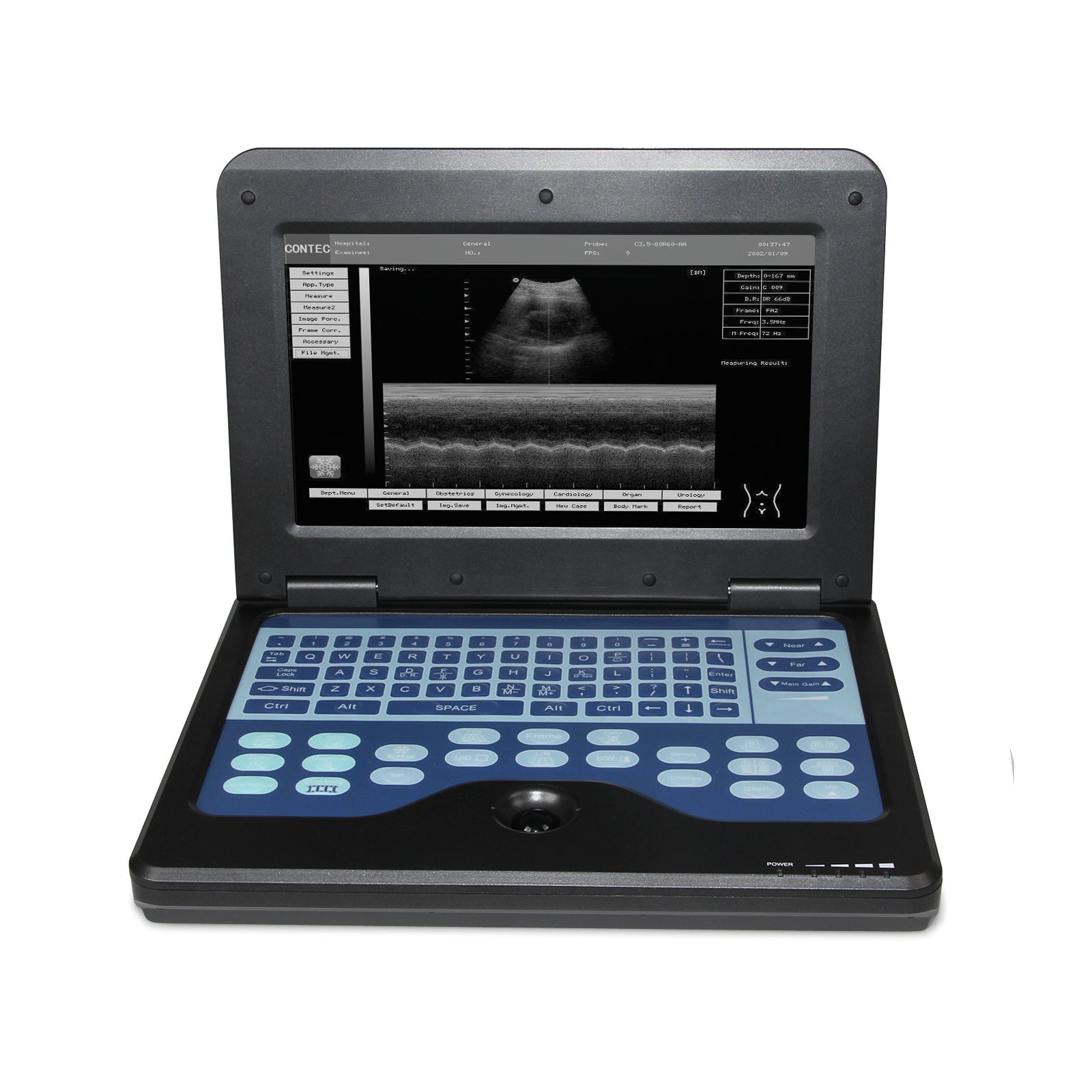

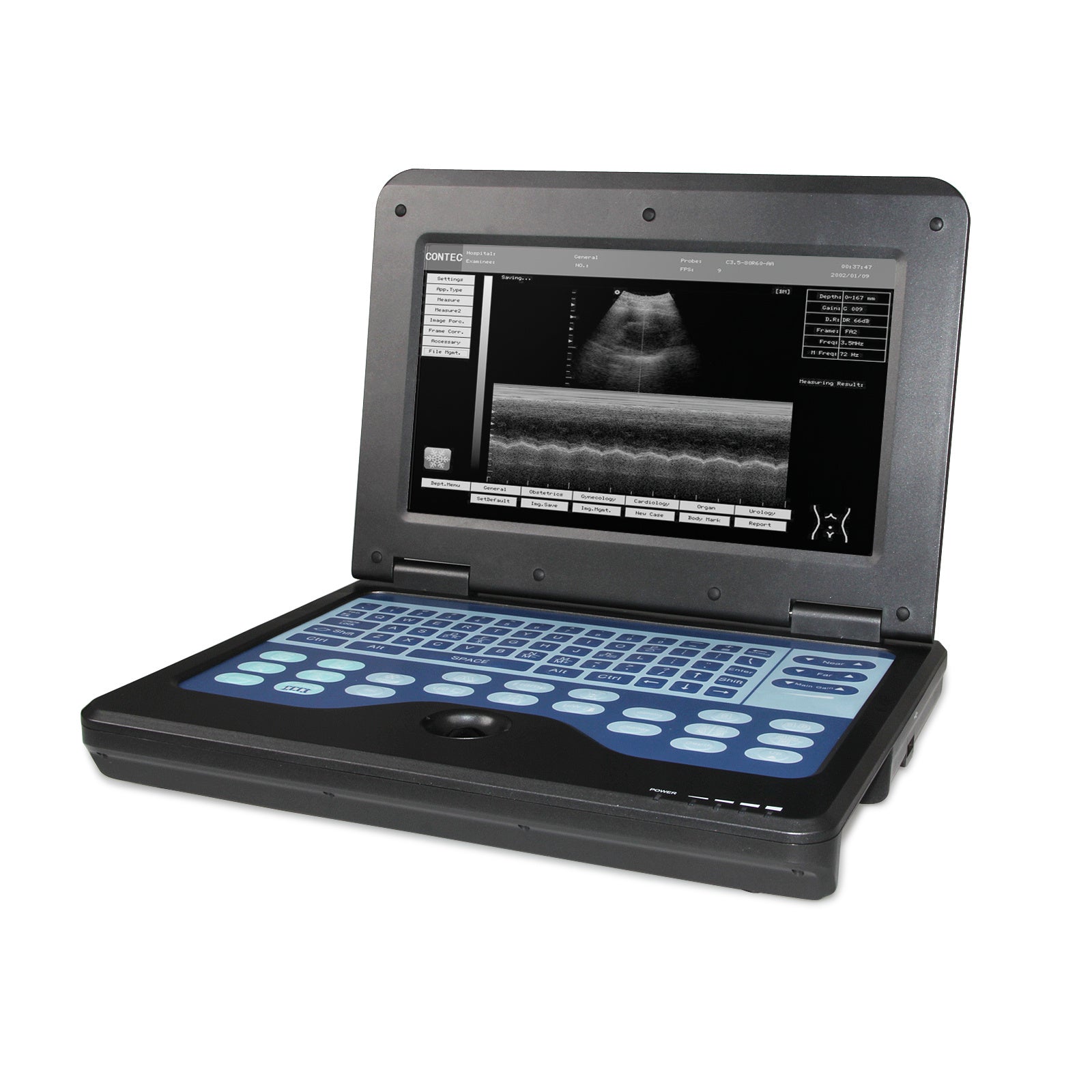

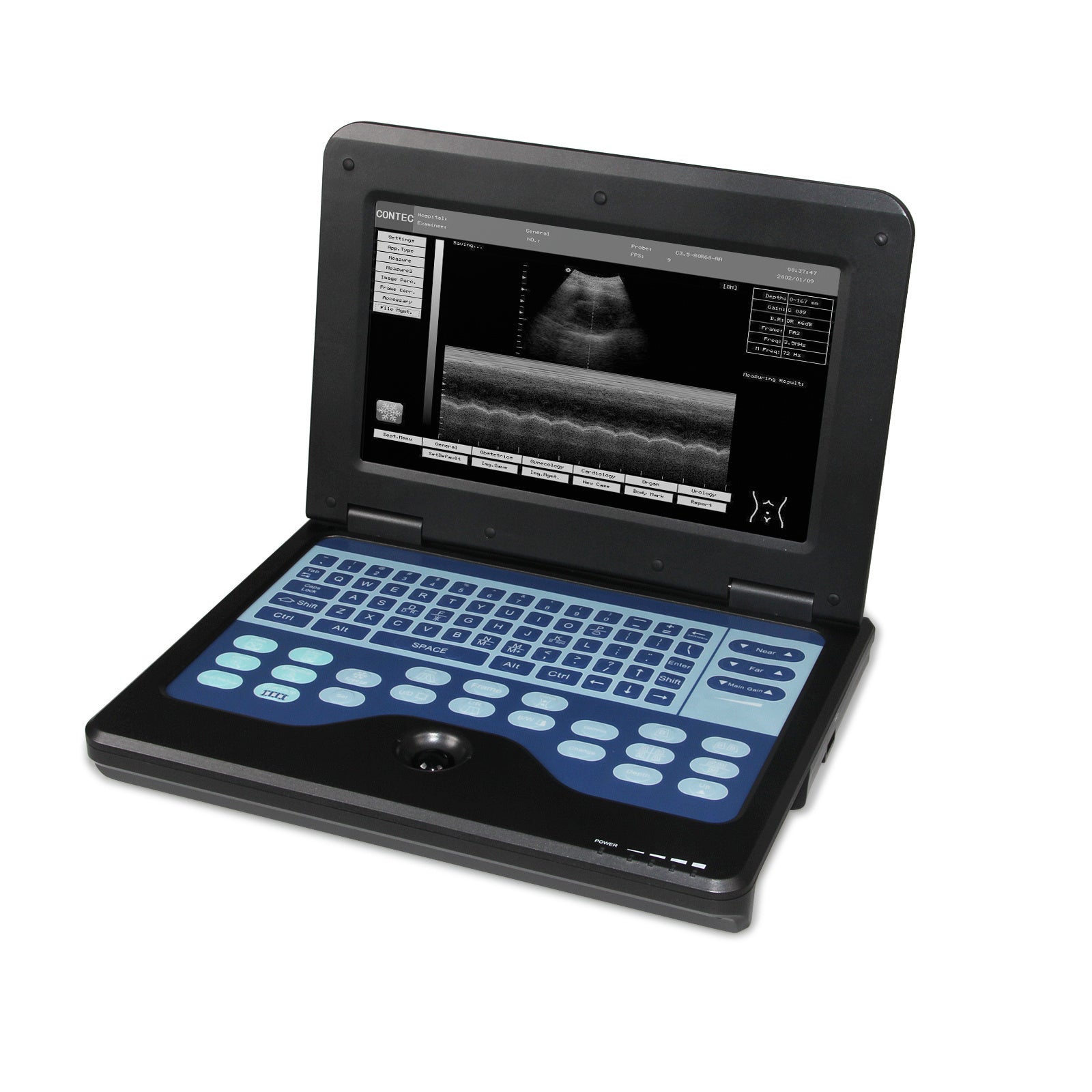

The notebook-type CMS600P2 is a full digital B-Ultrasound diagnostic system. It adopts an embedded operating system, which greatly optimizes the product performance. The system is taken more conveniently for its highly effective data processing ability, pop-up menu, and keyboard design. It includes rich measuring software packages that satisfy the clinic's diagnostic needs fully.

Main Features
◆The device that adopts Linux embedded operating system, has good compatibility, transplantable character, and flexible expansibility.
◆It adopts advanced full digital beam-forming, real-time dynamic aperture, real time dynamic receiving apodization, real-time dynamic receive focusing, frame correlation, modern image processing technology, etc., which improves image quality.
◆The system can be taken conveniently for notebook type, built-in battery, high integration of unit, small volume, and lightweight.
◆It adopts a touch-type folding keyboard, and flexible and shortcut trackball operation, which greatly quickens the test speed.
◆Neat and convenient image managing function that can print and export reports.
◆It includes rich measuring software packages: obstetrics, gynecology, cardiology, urology, and small parts. Many probes can be chosen, and wide applications can satisfy the clinic's diagnostic needs fully.
◆Near gain, far gain, and total gain can be adjustable alone.
◆Possess external memory function.
◆Can be connected to the video printer, inkjet printer, or laserjet printer.

Main Performance
Display mode: B,2B,4B, B/M, M
Image gray scale:256

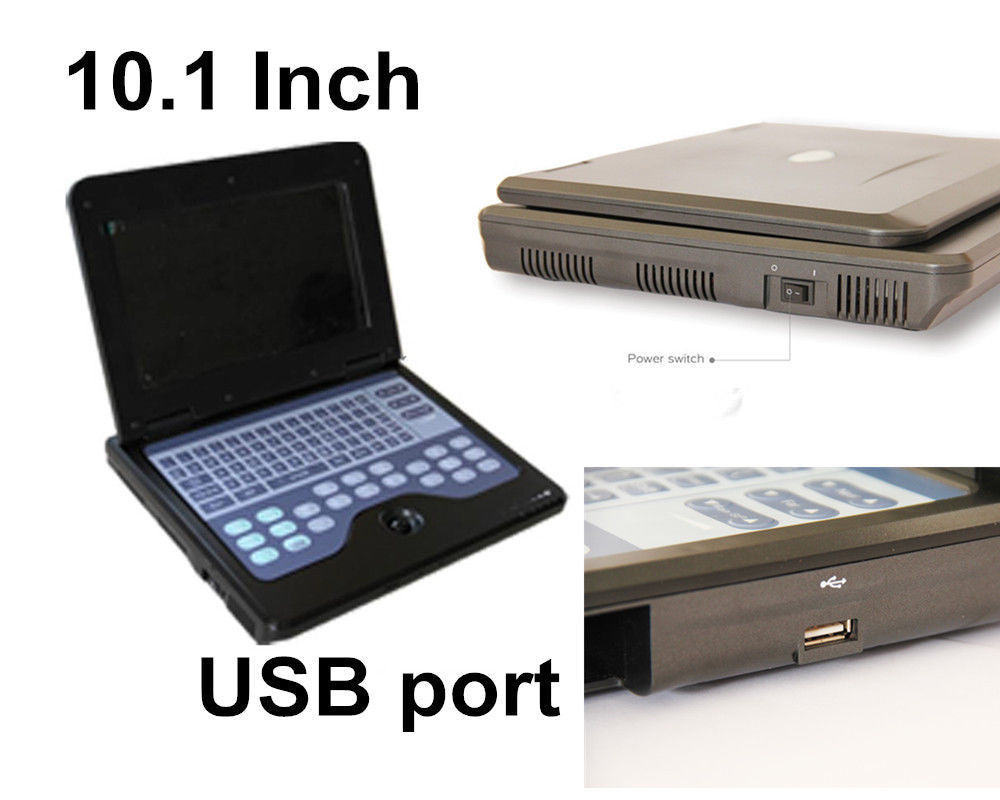

Monitor:10.1 inch TFT LCD
Display resolution:1024*600
Lateral resolution:2 mm (near field) and 4 mm (far field)
Axial resolution:2 mm (near field) and 2 mm (far field)
Dead zone:≤3 mm
Display depth:≤240 mm
Horizontal geometric position precision:≤5%
Vertical l geometric position precision:≤5%
Zoom:0.9, 1.0, 1.1, 1.2, 1.3, 1.5, 2.0
Cine loop:600 frames
Image storage:2048 frames
Body mark:43
Focus: The number and position can be adjustable.
Assistant tool: Puncture guide and histogram
Obstetrics, gynecology, cardiology, small parts, urology, etc. can generate reports automatically.
Measurement: Distance, circumference, area, volume, angle, ratio, slope, etc.
Support Chinese, and English language interface display and input.
The management interface menu, Chinese and English operating systems, image processing default, and a key function of optimization.
Measurement formulas can be set up differently according to the different races.
Comment: Date, time, name, hospital, number, frame rate, depth, gain, dynamic range, frame correlation, frequency, etc.
Image processing: Controllable frame correlation, gamma correction, histogram
Image conversion: Up and down, left and right, black and white
Tissue harmonic imaging
Screen comments function in both Chinese and English
Support USB storage
Update software through USB

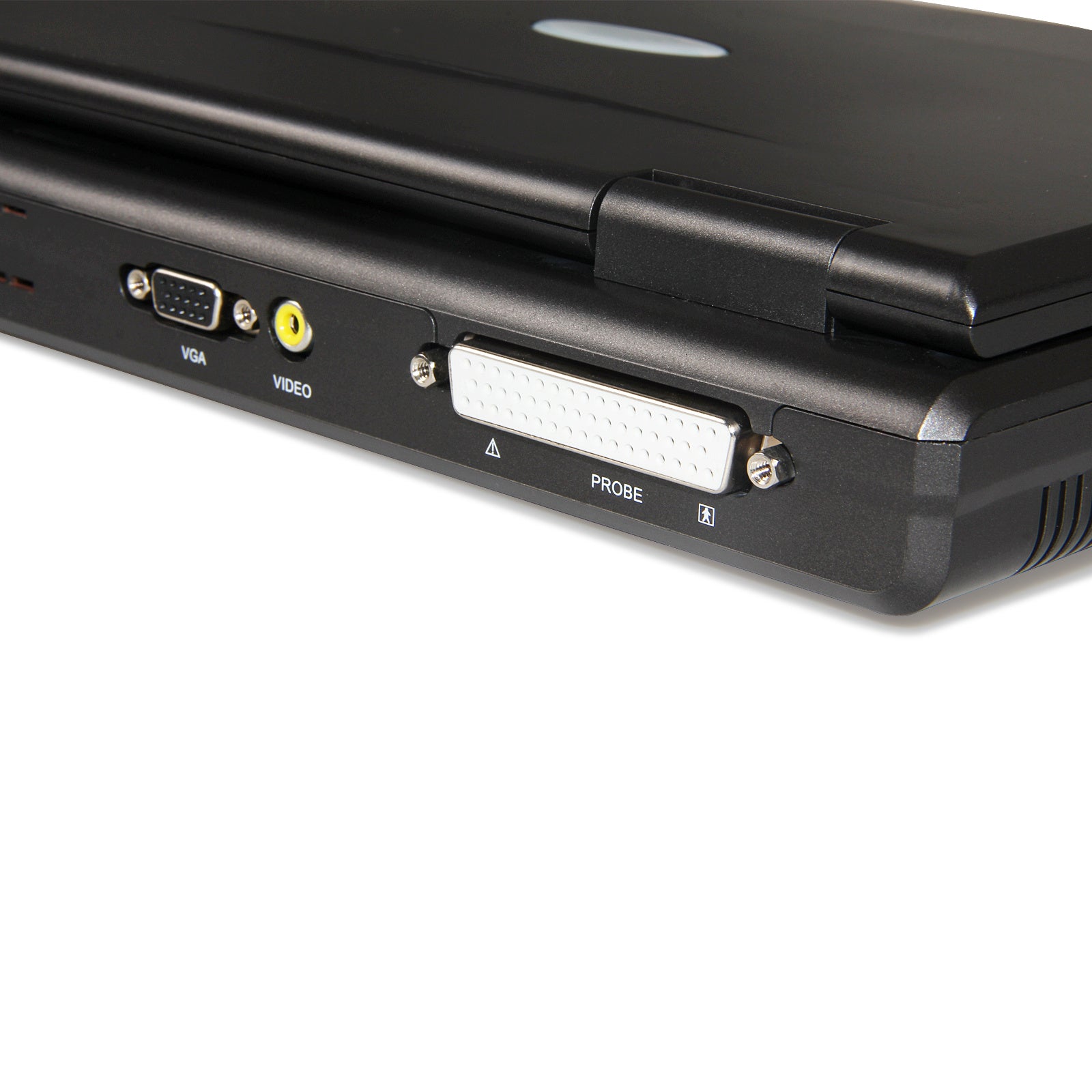

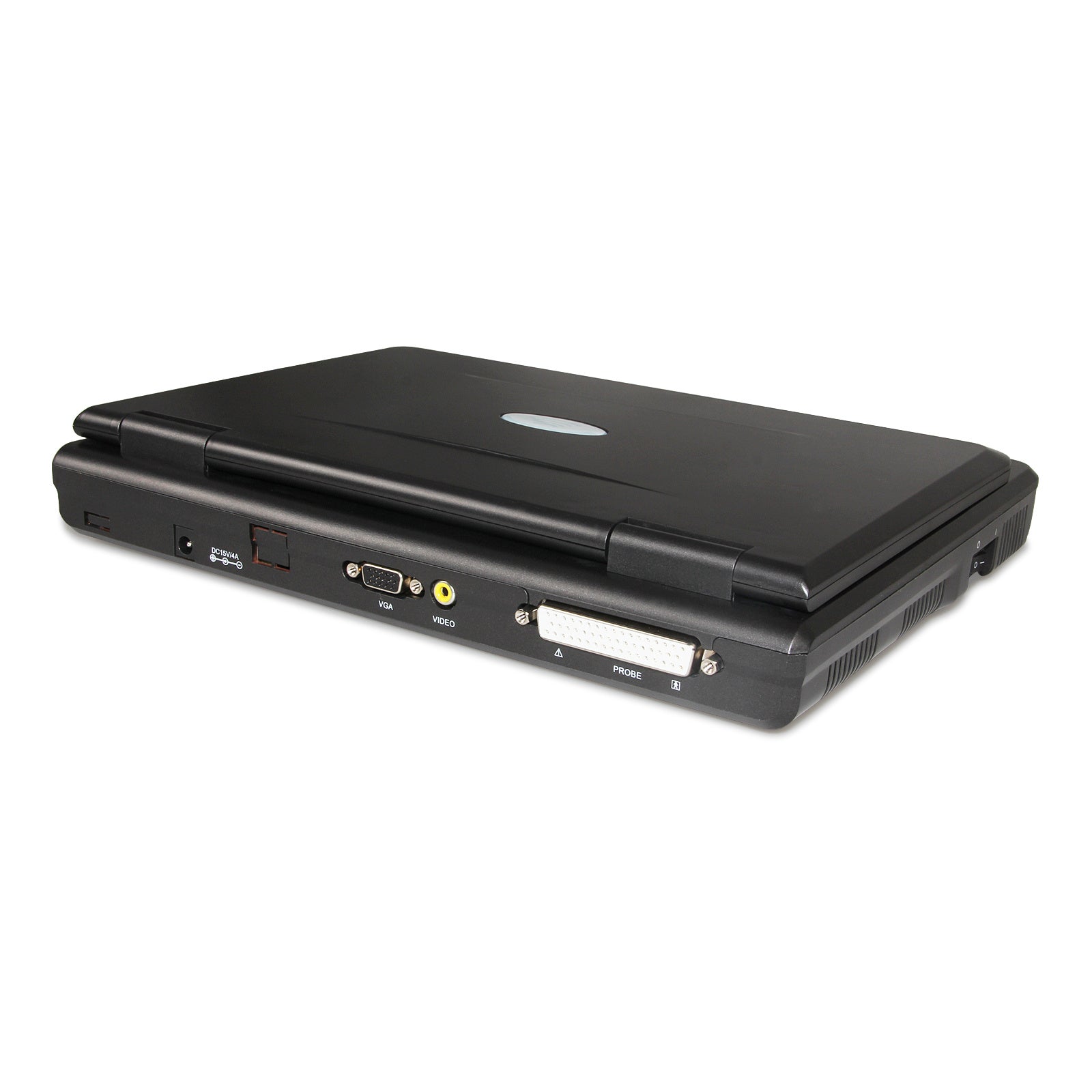

Interface: USB, Video, VGA

Standard Configuration
3.5 MHz convex probe, 2.0 MHz~5.0 MHz

Optional Configuration
6.5 MHz endo-vaginal probe, 5.0 MHz~8.5 MHz
7.5 MHz linear probe, 5.0 MHz~10.0 MHz

Physical Identity
Dimension:292 mm*232 mm*45 mm
Weight:2.3 kg (include probe)

Note
3.5 MHz micro convex probe and C3.5-80R20-A16A are mainly used for in vitro diagnosis of small animals and human beings

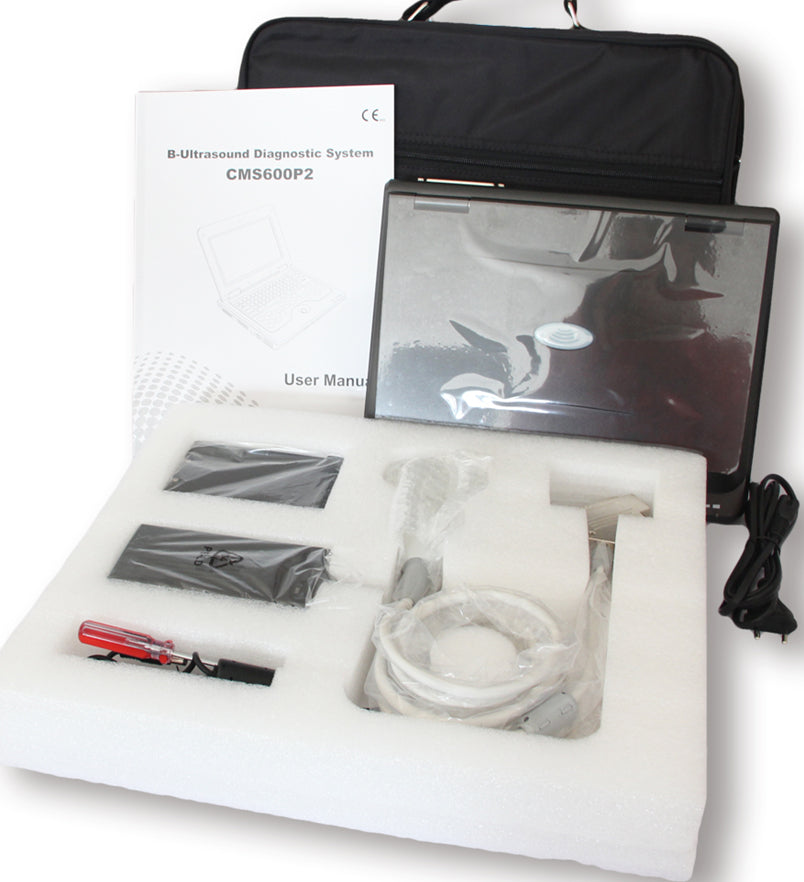

Extra Accessories included

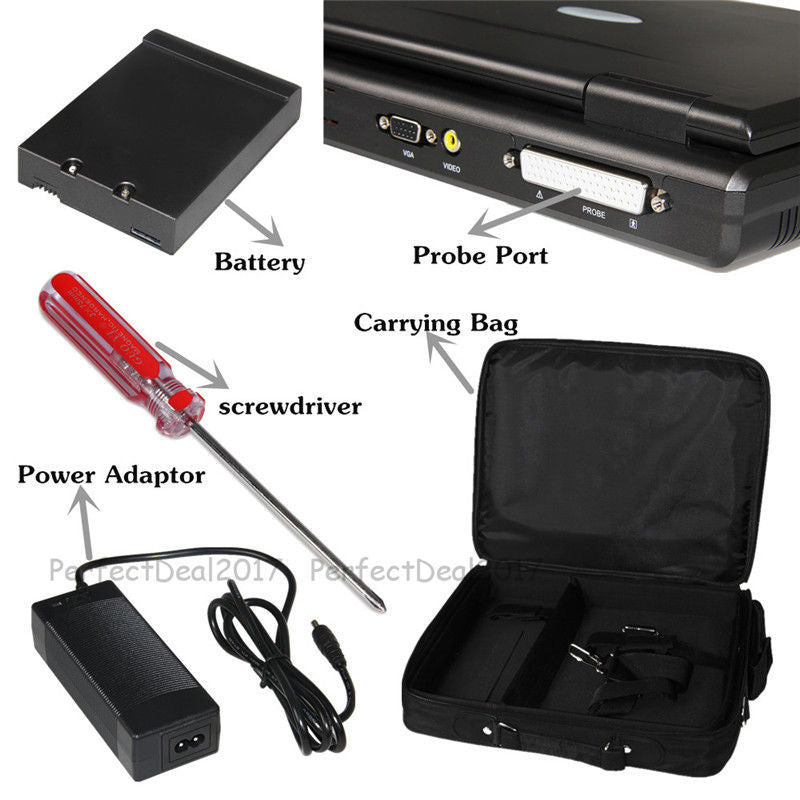

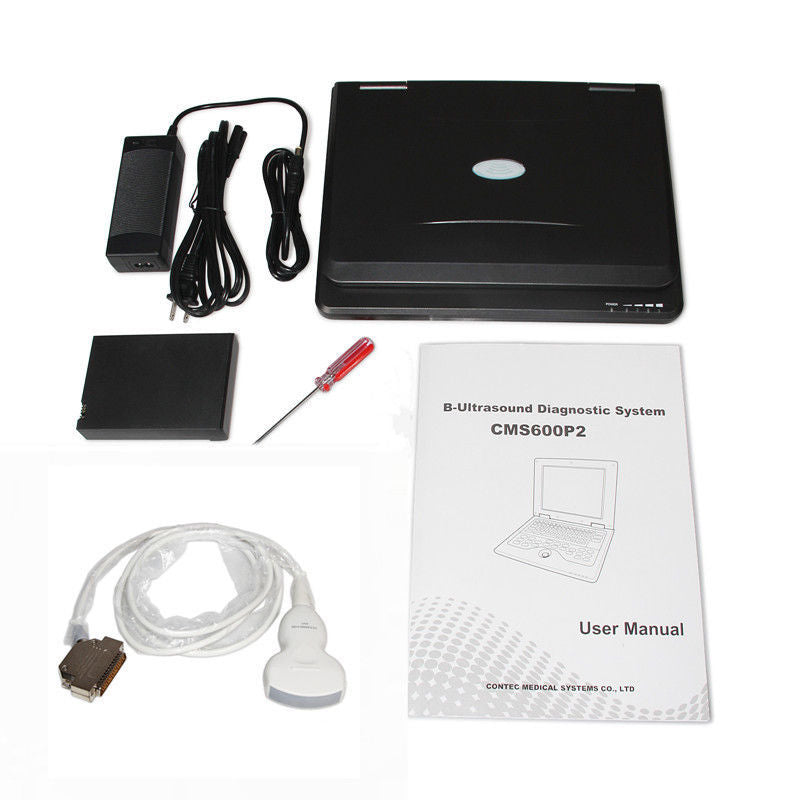

One abdominal probe (3.5 MHz) ● One User Manual ● One power cord ● One adapter ● One screwdriver ● One handbag
