PRODUCT OVERVIEW:

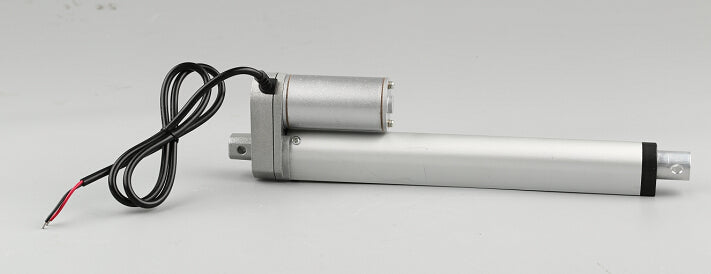

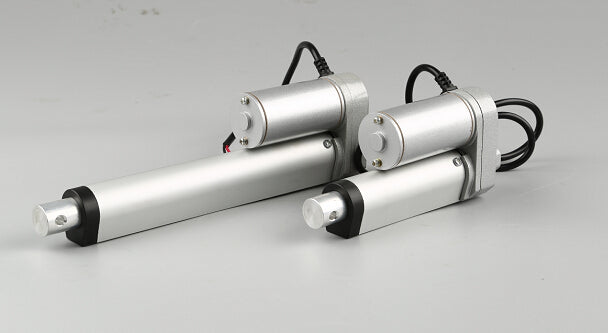

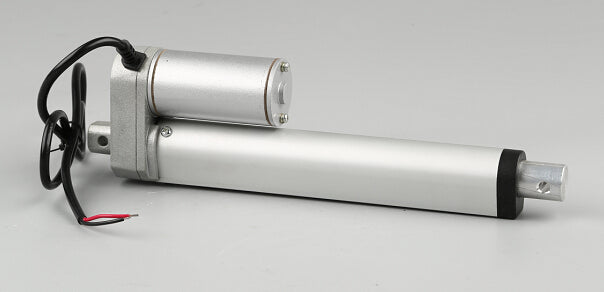

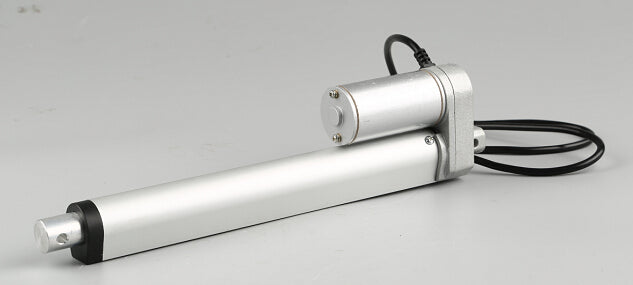

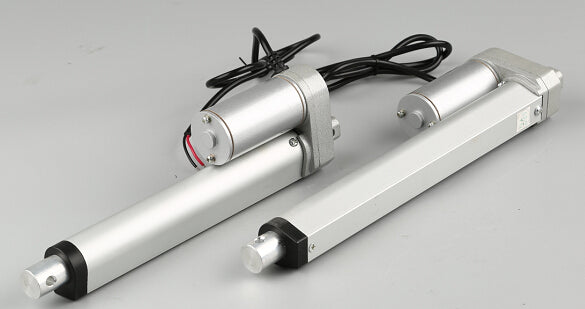

The JS-TGZ-U1 DC Linear Actuator is an electrically powered motion component designed to convert rotary motor movement into controlled straight-line extension and retraction. It can be integrated into compatible mechanical systems for pushing, pulling, positioning, opening, closing, or lifting applications.
This model features a metal housing, a built-in limit switch, and multiple voltage, speed, and force configurations. It is suitable for selected furniture mechanisms, louvre systems, vehicle applications, industrial equipment, and other compatible automation projects.
This listing offers a 300mm stroke option. Select the required voltage and speed/force configuration carefully before ordering.
KEY FEATURES:
Linear push-and-pull movement powered by a DC motor.
300mm stroke length for the selected product configuration.
Multiple voltage options: 12V DC, 24V DC, 36V DC, and 48V DC.
Seven listed speed and force configurations.
Metal actuator body with an integrated motor and drive mechanism.
Built-in end-limit switch to stop movement at the factory-set travel limits.
Reversible movement through a compatible DC control circuit.
Designed for integration into compatible manual, remote-controlled, or automated systems.
HOW IT WORKS:
The DC motor drives an internal reduction mechanism that converts rotational movement into linear movement through a screw-and-nut drive arrangement. This moves the actuator rod outward or inward, depending on the electrical control direction.
A compatible reversing switch, relay, or motor controller can be used to control extension and retraction. The actuator's built-in limit switch stops travel at its preset endpoints. The limit-switch positions are not adjustable after factory assembly, according to the supplier.
POTENTIAL APPLICATIONS:
Motorised louvre and ventilation mechanisms
Compatible vehicle and marine mechanisms
Adjustable furniture, including selected beds and sofas
Industrial machinery and positioning systems
Automated opening and closing mechanisms
Mechanical linkages, lifting arrangements, and custom DIY automation projects
Application suitability depends on the required force, stroke, mounting geometry, duty cycle, environmental conditions, and control system.
VARIANT SELECTION
Stroke Length: 300mm
Voltage:
12V DC
24V DC
36V DC
48V DC
Speed and Rated Force:
6mm/s – 1000N
10mm/s – 900N
15mm/s – 750N
20mm/s – 600N
25mm/s – 400N
30mm/s – 300N
40mm/s – 200N
TECHNICAL SPECIFICATIONS:
Model: JS-TGZ-U1
Product type: DC electric linear actuator
Stroke length: 300mm
Operating voltage options: 12V DC, 24V DC, 36V DC, 48V DC
Selectable speed: 6–40mm/s, depending on configuration
Selectable rated force: 200–1000N, depending on configuration
Motor power: 30W
Protection rating: IP45
Built-in limit switch: Yes
Limit-switch adjustment after manufacture: Not supported, according to the supplier
Noise level: Below 53dB
Working efficiency/duty specification: 10%
Operating ambient temperature: -5°C to +50°C
Housing material: Metal
Product weight: Approximately 1,200g
Package dimensions: Approximately 435 × 40 × 75mm
DIMENSIONS AND MOUNTING:
Stroke length: 300mm of linear travel.
The supplier states a standard installation dimension of stroke length + 105mm. For a 300mm stroke, this indicates an approximate retracted mounting dimension of 405mm, subject to the supplier's measurement reference and mounting-hole positions.
The supplied technical drawing shows mounting points at the actuator ends and a cylindrical body approximately 30mm in diameter. Other dimensions shown in the drawing relate to specific housing and mounting features; check the drawing carefully against your installation space before ordering.
The 435 × 40 × 75mm measurement is the supplier's package size, not the confirmed overall installed dimensions of the actuator.
MATERIAL AND CONSTRUCTION
Material: metal
INSTALLATION AND CONTROL REQUIREMENTS:
Use a DC power supply matching the exact voltage selected.
Select a compatible reversing switch, relay, or motor controller for the required movement.
Secure the actuator through its mounting points using suitable hardware.
Ensure the connected mechanism moves freely throughout the full stroke.
Keep hands, clothing, cables, and other objects clear of moving parts.
Do not exceed the selected configuration's rated force or use the actuator as a substitute for a safety support.
Allow appropriate rest periods in accordance with the manufacturer's duty-cycle requirements.
IP45 is the stated protection rating. Do not assume the actuator is waterproof, submersible, or suitable for continuous outdoor exposure.
PACKAGE CONTENTS:
1 × JS-TGZ-U1 DC linear actuator
IMPORTANT COMPATIBILITY AND SAFETY DISCLAIMER:
This is a linear actuator component, not a complete powered mechanism or control system. The customer is responsible for checking voltage, force, speed, stroke, mounting dimensions, duty cycle, and electrical compatibility before purchase.
The built-in limit switches are factory-set and are not adjustable after manufacture, according to the supplier. Actual performance depends on the selected configuration, load, installation, and operating conditions. Avoid overloading the actuator or operating it beyond its specified duty limits.
