Product Features:

  • High-Speed Performance: Max sampling rate up to 400MHz with state sampling up to 30M. Capable of collecting and analyzing digital signals up to 100MHz.

  • Dual-Mode Operation:

    • Stream Mode: USB real-time transmission to PC for ultra-large sampling depth.

    • Buffer Mode: Onboard hardware storage for wide bandwidth and ultra-high sampling rates.

  • Large Onboard Memory: Equipped with 256Mbit onboard memory (up to 16G sampling depth) to ensure real-time storage bandwidth up to 1.6Gbps.

  • Adjustable Voltage Thresholds: Continuously adjustable levels supporting 1.2V / 1.5V / 1.8V / 2.5V / 3.3V / 5.0V logic standards with precision under 100mV for maximum noise margin and zero false triggers.

  • 16-Stage Advanced Triggering: Features 16-stage combined advanced trigger conditions, including protocol content triggering, making it easy to isolate complex signals quickly.

  • Sampling Depth Timelines:

    • 100M sampling rate: Captures up to 160 seconds of waveform

    • 20M sampling rate: Captures up to 13 minutes of waveform

    • 1M sampling rate: Captures up to 4 hours of waveform

  • Durable & Shielded Design: Solid all-metal enclosure provides 360-degree noise shielding, fast heat dissipation, and overall circuit stability.

  • Built-in Protection: Features integrated overvoltage and electrostatic protection for long-lasting durability.

  • Software & Interface: USB Type-C connection. Compatible with Windows (XP / Vista / Win7 / Win8 / Win10). Supports multi-layer protocol decoding for intuitive data analysis.

Why Choose DSLogic Over Entry-Level Analyzers?

  • Uncompromised Bandwidth & Memory: Entry-level analyzers often sacrifice bandwidth or memory depth. While basic USB analyzers max out at 200–300Mbps due to host transfer limits, DSLogic’s 256Mbit hardware buffer easily delivers a full 1.6Gbps sampling bandwidth.

  • Advanced Multi-Stage Triggering: Unlike basic logic analyzers that lack advanced trigger settings—forcing you to search through useless data—DSLogic offers 16-stage combined triggers to pinpoint precise signal events.

  • Precision Threshold Matching: Rather than relying on fixed-voltage interface chips, DSLogic uses high-speed comparator circuits to deliver precise, adjustable threshold tuning for cleaner signal capture without burrs.

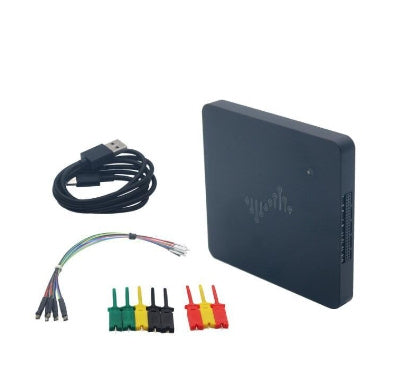

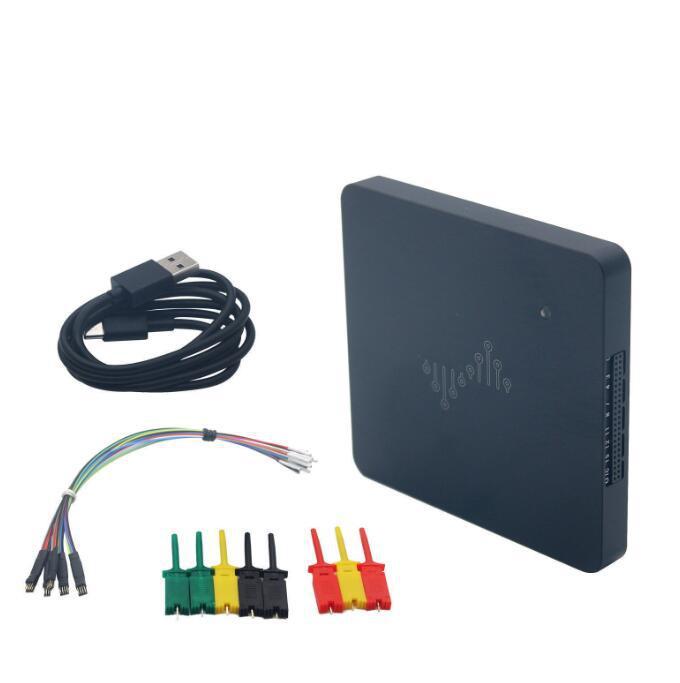

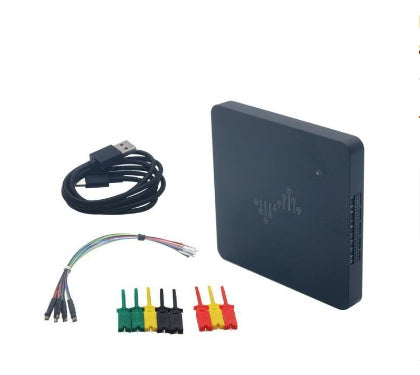

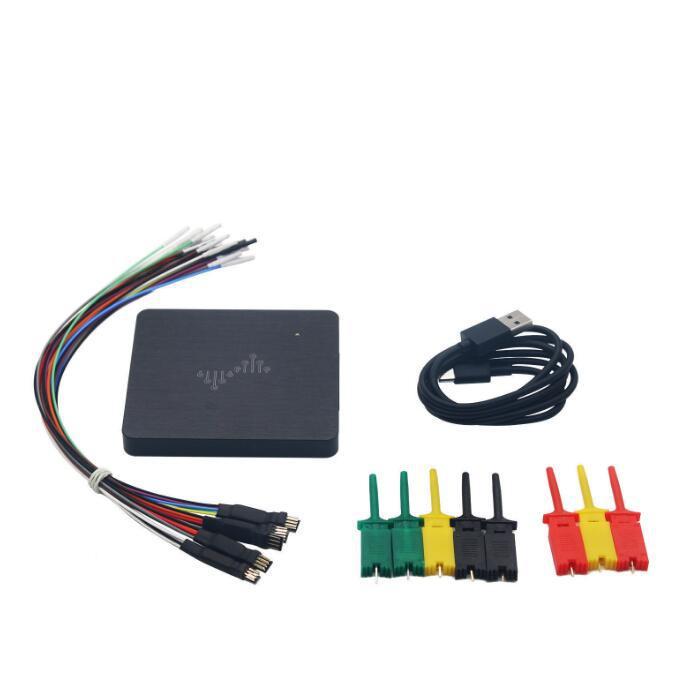

Package Contents:
1 × DSLogic Main Unit

1 × USB Type-C Cable

16 × Signal Test Clips (Colors selected randomly)

5 × Wiring Harnesses / Jumpers (Teflon Silver-Plated Wire)

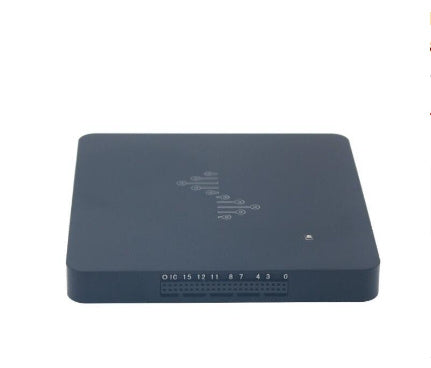

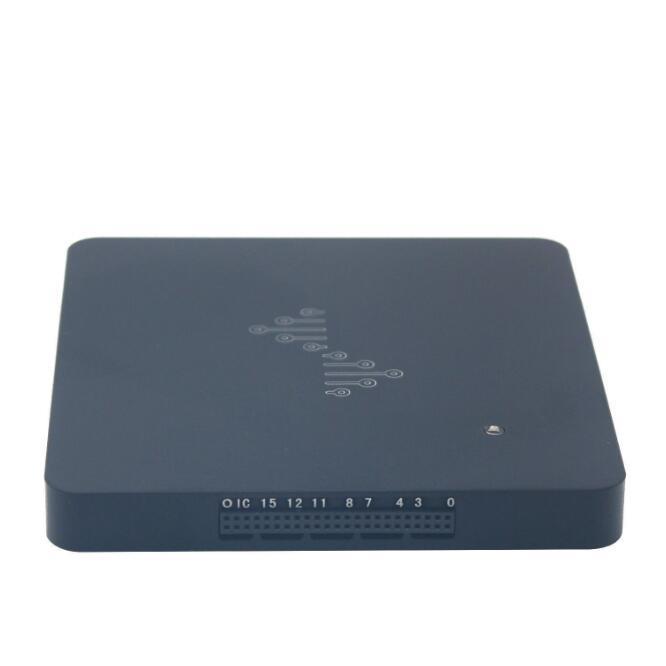

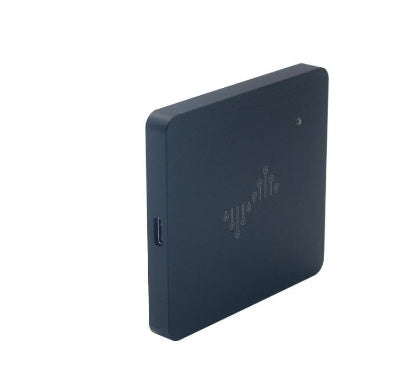

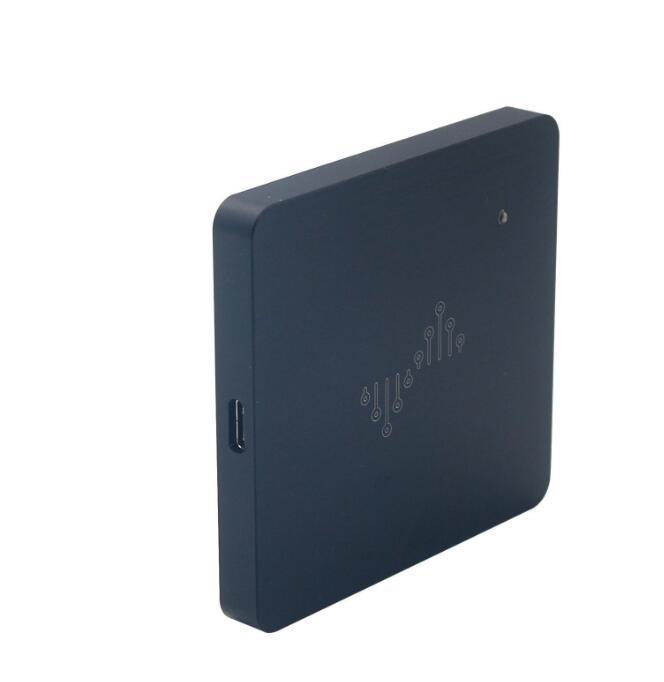

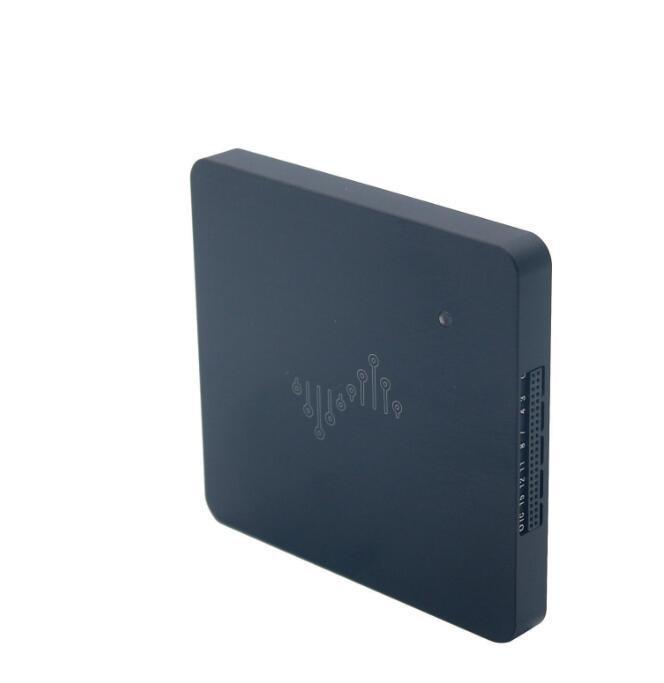

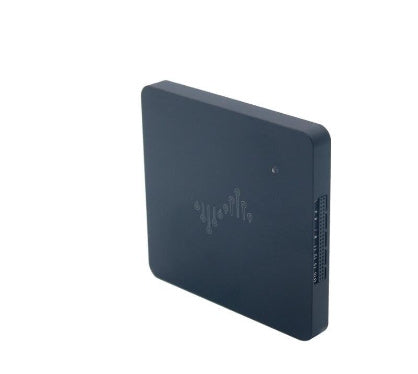

Product Image:
