Description:

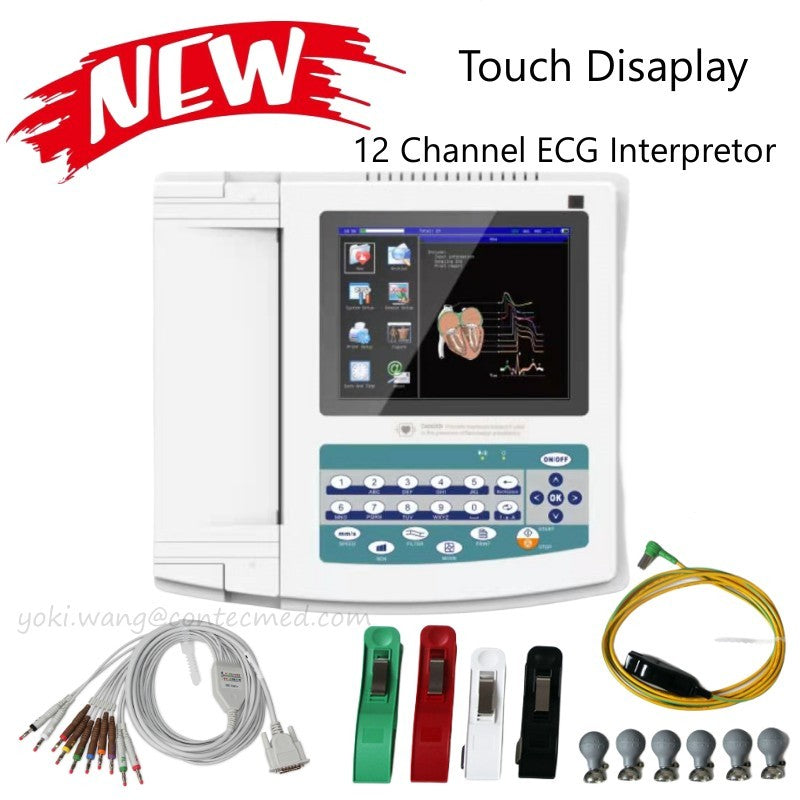

Perform fast, accurate, and simultaneous 12-lead ECG recordings with this professional digital electrocardiograph. Featuring a responsive touchscreen, automatic ECG analysis, built-in thermal printer, rechargeable battery, and PC software support, it is ideal for hospitals, clinics, diagnostic centers, emergency care, and mobile medical services.
Key Features:
Simultaneous 12-lead ECG acquisition
High-resolution color touchscreen display
Built-in high-speed thermal printer
Automatic ECG measurement and interpretation
Multiple recording and printing formats
Built-in rechargeable lithium battery
PC software connectivity for data management
Large internal memory for patient records
Multi-language interface
Automatic lead-off detection
Paper-out reminder
AC and battery operation
Defibrillation-protected patient input
Lightweight portable design
Suitable for continuous clinical use
Specifications:
Model: ECG1200G
Product Type: Digital 12-Lead Electrocardiograph
Display: Color Touchscreen
Channels: 12
Leads: 12 Simultaneous
Recording System: Thermal Printer
Recording Paper: 210 mm × 20 m Thermal Paper
Sampling Accuracy: 24-bit
ECG Sampling Frequency: 32 kHz
Waveform Processing Frequency: 1 kHz
Minimum Detectable Signal: 20 μV
Input Mode: Floating with Defibrillation Protection
CMRR: >105 dB
Time Constant: ≥3.2 s
Noise Level: ≤12 μVp-p
Sensitivity:
5 mm/mV
10 mm/mV
20 mm/mV
Paper Speeds:
5 mm/s
6.25 mm/s
10 mm/s
12.5 mm/s
25 mm/s
50 mm/s
Recording Modes:
Auto
Manual
Rhythm
Printing Formats:
Auto 12×1
Auto 6×2+1
Auto 6×2
Auto 3×4+2
Rhythm 12
Rhythm 10
Rhythm 8
Rhythm 6
Manual
Battery:
14.8V 3500mAh Rechargeable Lithium Battery
Power Supply:
AC 100–240V, 50/60Hz
Protection Rating:
IPX0
Working Mode:
Continuous Operation
ECG Parameters Measured:
Heart Rate (HR)
PR Interval
P Duration
QRS Duration
QT Interval
QTc
P Axis
QRS Axis
T Axis
R(V5)
S(V1)
R(V5)+S(V1)
Filters:
AC Power Frequency Filter (50/60Hz)
EMG Filter
Baseline Drift Filter
Practical Applications
Hospitals
Cardiology Clinics
Diagnostic Centers
Medical Colleges
Emergency Departments
Ambulance Services
Health Screening Camps
Occupational Health Programs
Home Healthcare Visits
Routine Cardiac Examinations
Physical Specifications:
Color: White
Material: Plastic
Machine Dimensions:
340 × 320 × 85 mm
Product Net Weight: 3.2 kg
Package Dimensions: 431 × 384 × 240 mm
Shipping Weight: Approx. 5.5 kg
Working Environment Operating Temperature: 5°C to 40°C
Operating Humidity: 25%–95% RH (Non-condensing)
Operating Pressure: 700–1060 hPa
Storage Temperature: -20°C to +55°C
Storage Humidity: ≤95%
Storage Pressure: 500–1060 hPa
Certifications: CE, FDA, SFDA, CMC
Product Information:
This professional ECG system simultaneously records all 12 leads, automatically analyzes cardiac parameters, stores patient records, and prints high-quality ECG reports using the integrated thermal printer. Its touchscreen interface, rechargeable battery, and PC software compatibility make it suitable for both stationary and portable medical applications.
Package Includes:
1 × ECG1200G Digital ECG Machine
1 × 12-Lead Patient Cable
1 × Limb Electrode Set
1 × Chest Electrode Set
1 × Thermal Recording Paper Roll
1 × Power Cord
1 × Earth Wire
1 × User Manual
Important Notice:
Intended for use by trained healthcare professionals.
This device is designed for clinical ECG recording and cardiac assessment.
ECG interpretation should always be reviewed by a qualified medical practitioner.
